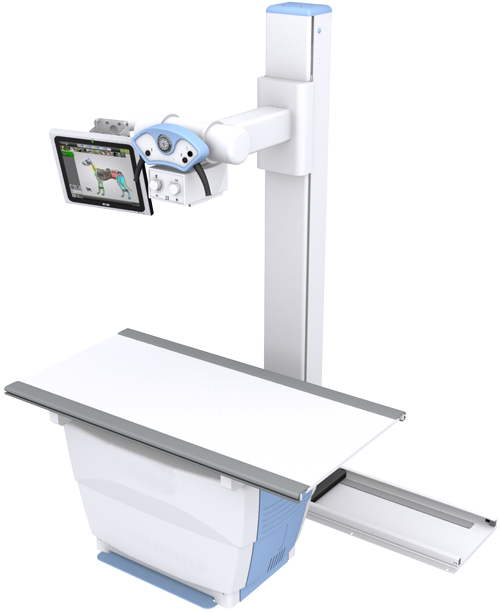

Sliding column x-ray system
With a choice of three power ranges of generators (16, 20 and 32kW) the sliding column x-ray system comes complete with a four way floating top table with integral under surface cassette tray.

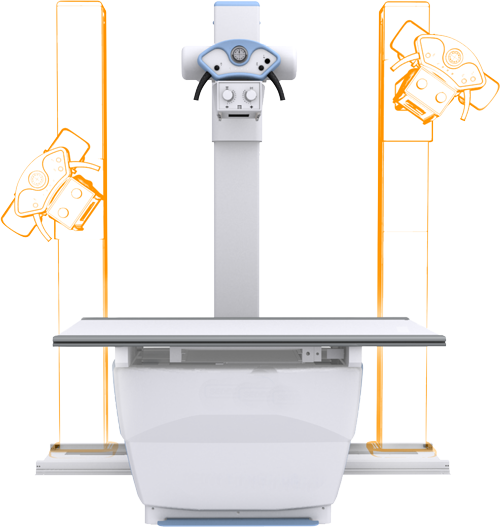

The counterbalanced adjustable height tube column, supporting the dual focus rotating anode Toshiba tube, not only enables the focal film distance to be adjusted to any height above the table top, but slides in floor mounted runners beyond the full length of the table making standing lateral images easier than ever.
Finished in a brilliant white, the Sedecal system offers both operational simplicity and the ultimate in flexibility as well as sufficient power for every eventuality.
Supplied with a comprehensive 12 month warranty, all Sedecal systems are installed by our own team of engineers.
Sliding column x-ray system
The Table
- Sliding tube support column for maximum flexibility
- Four way floating top table
- Adjustable height counterbalanced tubehead
- Lockable tubehead rotation +/- 90
- Standard tabletop size 1500 x 710mm
- Optional table size 1950 x 710mm
- Foot operated electromagnetic table locks
- Under table CR cassette or DR panel holder
- Under table grid holder
- Bucky optionally available
The Generators
- 17 inch colour touchscreen controlled
- Anatomically programmed with over 300 preset factors
- Touchscreen can be wall, tube or pedestal mounted
- Dual focus Toshiba rotating anode tubes used throughout
- Mains, battery or capacitor powered
- Suitable for use with all CR and DR systems
- Choice of 16kW, 20kW or 32kW versions
- Maximum output of:
- 125kV 200mA (16kW)
- 125kV 320mA (20kW)
- 125kV 400mA (32kW)
