Sedecal S

Sedecal S

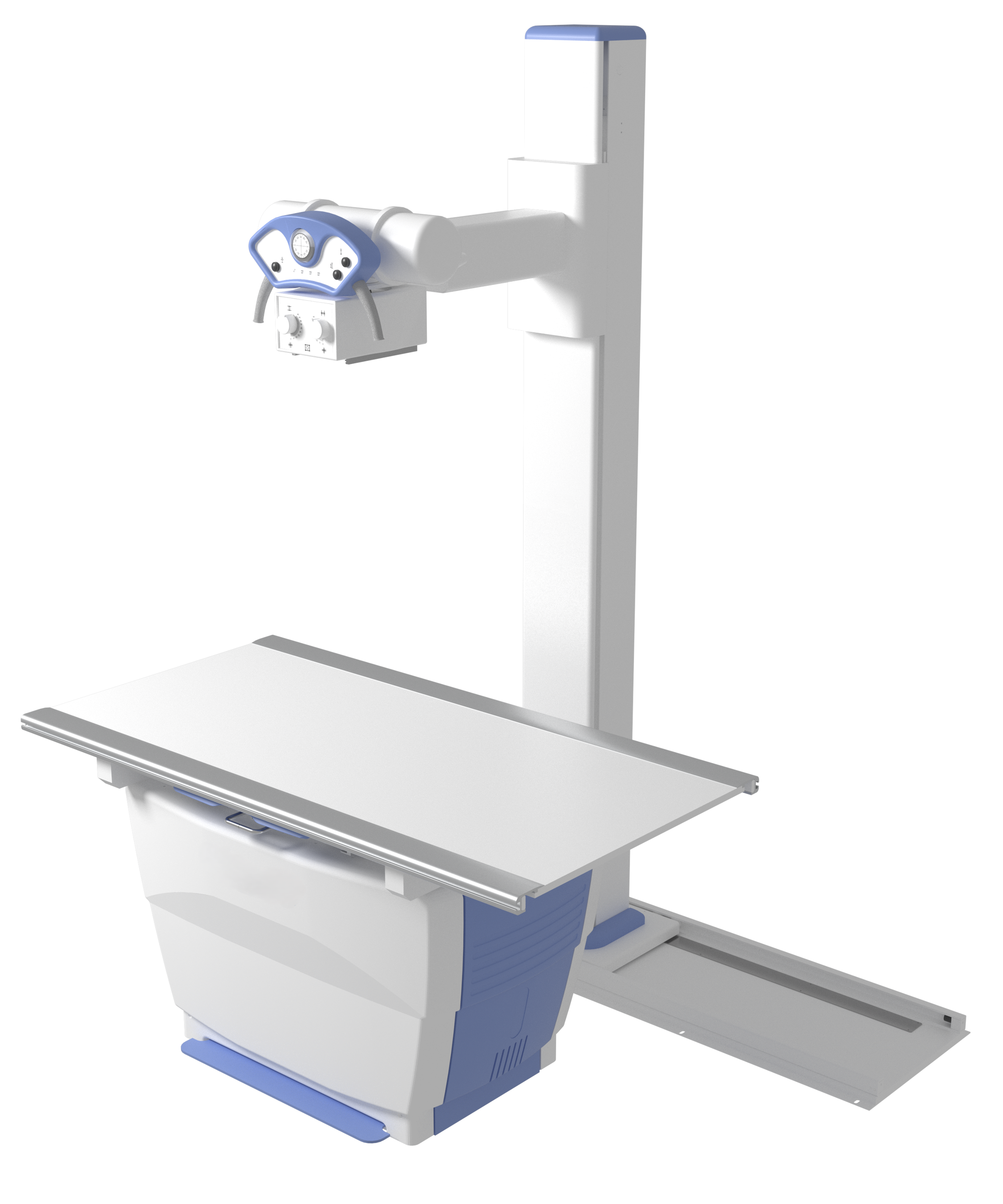

The Sedecal S variable height veterinary X-ray  system combines a four way floating tabletop and a sliding column, height adjustable, counterbalanced Canon tubehead with a powerful anatomically programmed generator for efficient high powered radiography.

    Features

    • Four way floating table top
    • Sliding tube support column
    • Height adjustable and rotating tubehead
    • Foot operated electromagnetic locks
    • 17 inch colour touchscreen control
    • Over 300 preset anatomically programmed exposure factors
    • Touchscreen can be wall, tubehead or pedestal mounted
    • Dual focus Canon rotating anode tubehead

Downloads

Sedecal S
Sedecal S

Specifications

Tube support columnSliding column
TubeheadAdjustable height
Tubehead rotationLockable +/- 90 degrees
TabletopFour way floating
Tabletop sizeStandard 1500 x 710 mm, optional 1950 x 710 mm
Table locksFoot operated electromagnets
DR panel holderUnder table
