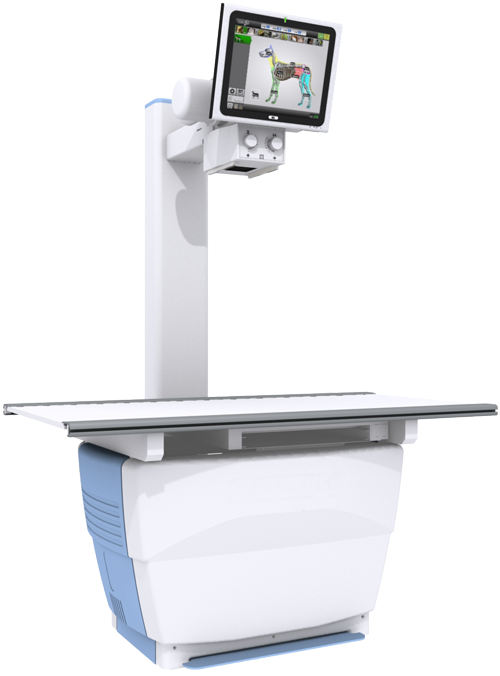

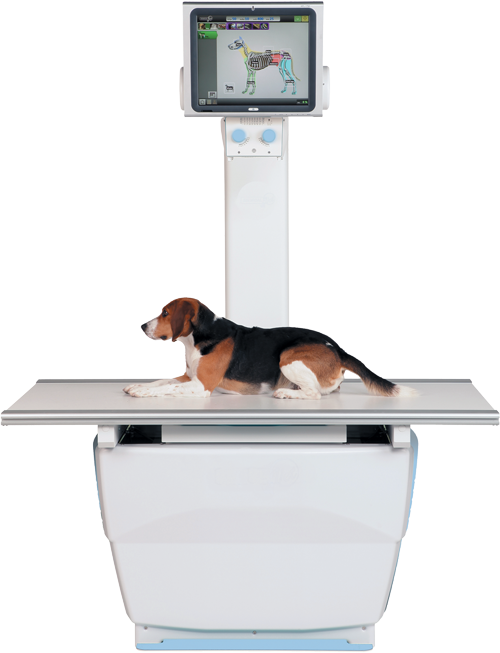

Fixed height x-ray system
With a choice of three power ranges of generators (16, 20 and 32kW) the fixed height x-ray system comes complete with a four way floating top table with integral under surface cassette tray.
The tube column, supporting the dual focus rotating anode Toshiba tube, has a fixed height keeping the focal film distance constant at all times.
Finished in a brilliant white, the Sedecal system offers both operational simplicity and flexibility as well as sufficient power for every eventuality.
Supplied with a comprehensive 12 month warranty, all Sedecal systems are installed by our own team of engineers.
Fixed height x-ray system
The Table
- Four way floating top table
- Fixed height tubehead
- Standard tabletop size 1500 x 710mm
- Optional table size 1950 x 710mm
- Foot operated electromagnetic table locks
- Under table CR cassette or DR panel holder
- Under table grid holder
- Bucky optionally available
The Generators
- 17 inch colour touchscreen controlled
- Anatomically programmed with over 300 preset factors
- Touchscreen can be wall, tube or pedestal mounted
- Dual focus Toshiba rotating anode tubes used throughout
- Mains, battery or capacitor powered
- Suitable for use with all CR and DR systems
- Choice of 16kW, 20kW or 32kW versions
- Maximum output of:
- 125kV 200mA (16kW)
- 125kV 320mA (20kW)
- 125kV 400mA (32kW)
